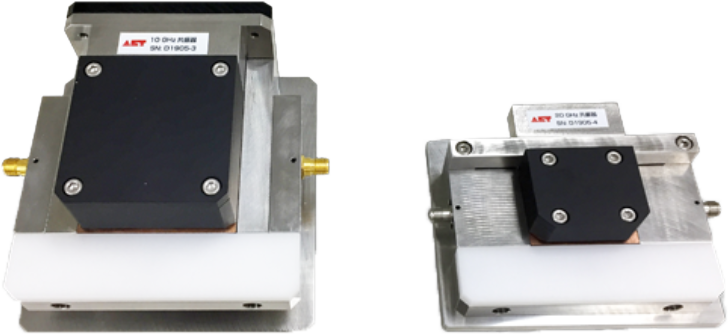

TE mode Cavity Resonator (thin film)

This measurement method is specifically designed for thin-film measurements.

This type of resonant cavity is also known as a split-cylinder resonator.

During measurement, the thin-sheet sample is inserted into the gap between the two resonant cavities. This method supports frequencies up to 60 GHz, making it suitable for 5G (fifth-generation mobile communication systems) applications.

Our TE-mode resonant cavity features a fixed sample insertion gap, providing better measurement stability compared to other products.
It can measure a wide range of materials, including both soft and brittle samples.
