Microwave Dielectrometer
Innovative Measurement Methods Enabled by Intelligent Design
Dielectric properties are key parameters in the design of wireless and high-speed digital devices.
To meet the growing market demand for fast and high-precision measurements, AET provides a high-accuracy dielectric measurement system that enables easy and precise characterization of various samples at a reasonable cost.

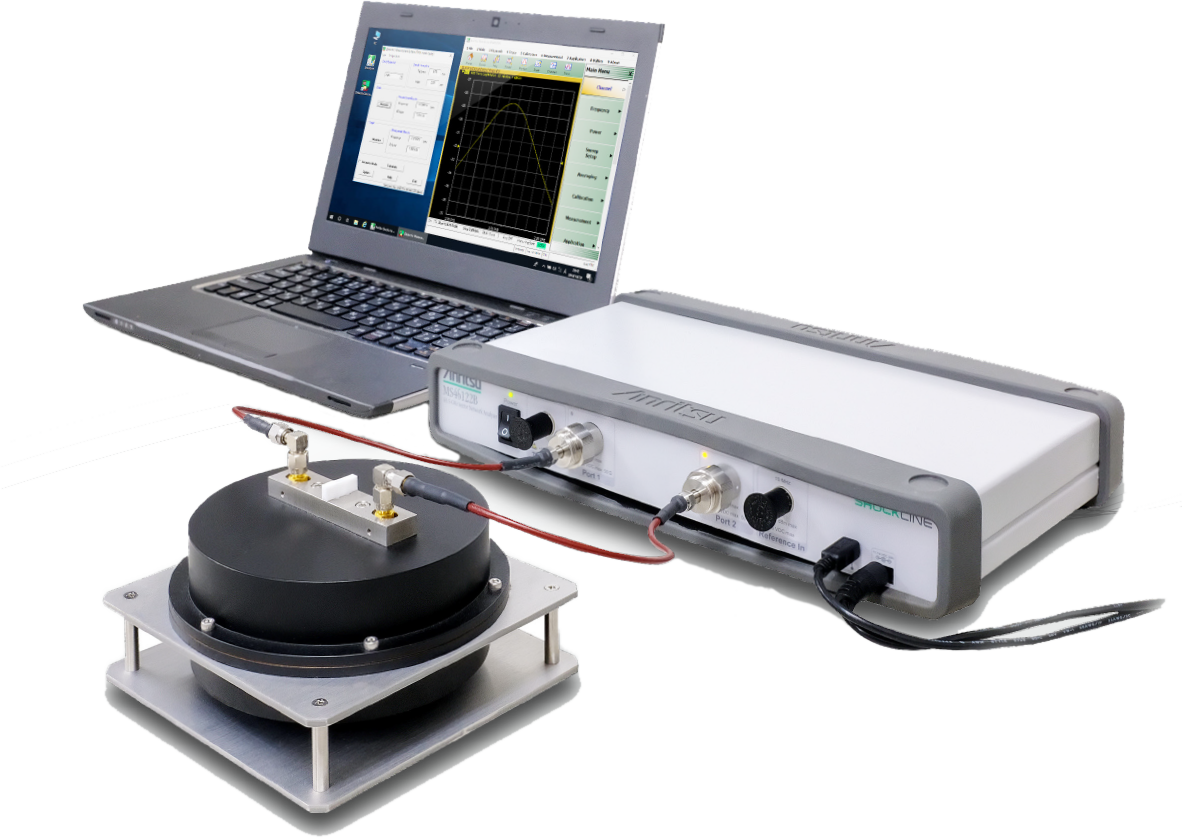

The Dielectric Constant Analysis System Includes:
-
Resonant cavity
-
Vector Network Analyzer (VNA)*
-
Windows PC
Based on your requirements (material type, size and shape, frequency), we select the most suitable measurement method and provide reliable measurement services.
* Note: The ANRITSU ShockLine™ VNA Series MS46122B is a PC-controlled USB vector network analyzer. It combines low cost with high precision as a new-generation VNA and is ideally suited for this system.
Compact USB Vector Network Analyzer MS46122B
-
MS46122B-010: 1 MHz – 8 GHz
-
MS46122B-020: 1 MHz – 20 GHz
-
MS46122B-043: 1 MHz – 43.5 GHz**
Advantages / System Features
High Accuracy:
The system design, combined with the resonant cavity and corresponding measurement methods, provides precise dielectric constant and loss measurements.
Easy to Operate:
Even users without prior experience using a network analyzer (NA) can perform stable measurements through the integrated software and system.
No Need for Additional Expensive Instruments:
The system is compatible with various common vector network analyzers (VNAs). It can be used with an external VNA, but depending on the situation, the simplest configuration may be sufficient.
Compatible with Multiple VNA Brands/Models:
For example, VNAs from Keysight, ANRITSU, Rohde & Schwarz (R&S), and Copper Mountain can all be used with the system.
