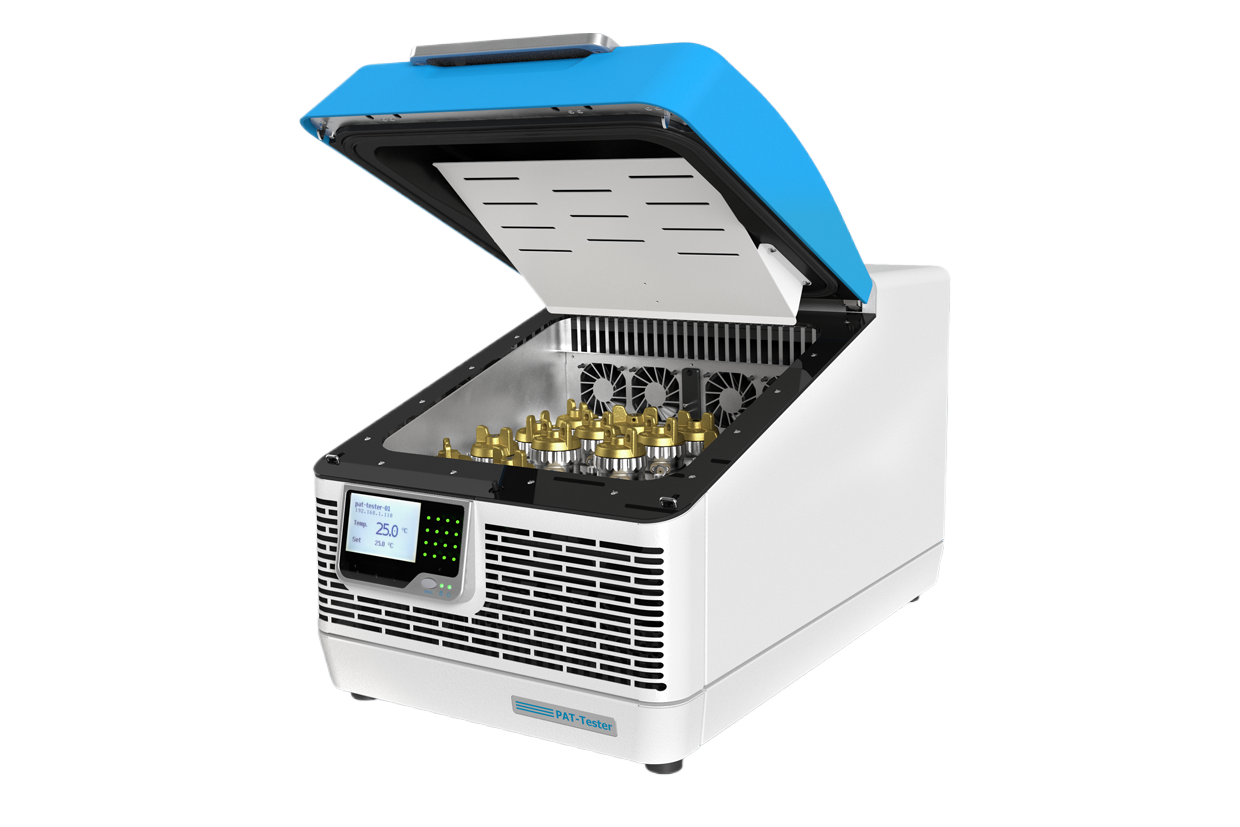

PAT-Tester-i-16
1. Multi-Channel Testing
- Supports up to 16 fully independent test channels
- Full potentiostat / galvanostat / impedance capabilities per channel
- Software-controlled switching between full and half-cell measurements
- Simultaneous recording of both half-cell voltages and sensor signals
2. Temperature Control
- Temperature-controlled chamber (+10 °C to +80 °C) with anti-condensation
- Integrated Peltier element for precise temperature control
- Suitable for various battery chemistries
3. Wireless & Compact
- Patented wireless connection saves lab space
- Minimizes cabling for easier setup
- LAN connection allows remote monitoring and control
4. Advanced Measurements
- Simultaneous DC and AC analysis
- Internal impedance analyzer measures impedance during constant current or voltammetry
- Captures comprehensive electrochemical characteristics of test cells
5. Compatibility
- Optimized for PAT series cells, adaptable to other cell types
- T-cells and pouch cells connectable via adapters
- Supports full-cell, cathode half-cell, and anode half-cell testing modes
General
Width: 380 mm
Depth: 640 mm
Height (Opened cover): approx. 600mm
Height (Closed cover): 375 mm
Weight: 26 kg (without test cells)
Channels per device: 1 to 16
Control voltage: -7 V to +7 V
Compliance voltage: -8 V to 8 V (no load)
Current: ±100 mA
Cell connection/Electrode connection: 3 Electrodes, sense connections, connection matrix
ADC: 2 x 24 Bit
DAC: 1 x 18 Bit
Slew rate: 2.5 V / µs
Bandwidth ranges: 500 kHz, 50 kHz, 5 kHz
Sampling interval (rate): 1 ms (1000 samples per second) with intelligent data recording
Input impedance: >100 MΩ || 20 pF
Internal sampling buffer: 100 GB
Computer interface: 1 GBit Ethernet, Multiuser, Device runs standalone (immune to network interruptions)
