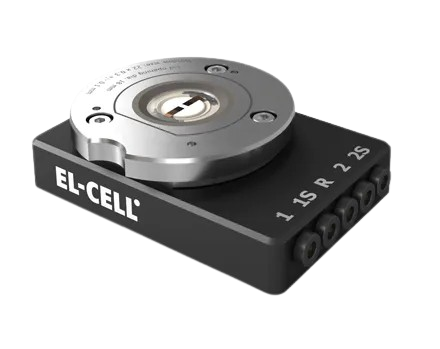

ECC-Opto-10
The next generation test cell for optical and X-Ray characterization in the reflective mode.
1. Next-Generation Operando Test Cell
- Designed for operando / in situ electrode characterization
- Compatible with light microscopy, Raman spectroscopy, and XRD (reflection mode)
2. Enhanced Cycling Stability
- Newly developed sealing concept with laser-welded glass-to-metal feedthroughs and foil seals
3. Optimized Mechanical Design
- Low cell height of 21.5 mm, suitable for most microscopes
- Fits standard microscope sample stages (76 × 26 mm, DIN ISO 8037-1)
4. Easy Handling & Fast Assembly
- Redesigned structure for fast assembly, dismantling, and easy cleaning
- Electrodes are easily accessible for post-mortem analysis
5. Flexible Electrode Arrangements
- Dedicated sample holders for side-by-side and face-to-face electrode arrangements
- Suitable for 2-electrode and 3-electrode setups
6. Broad Compatibility
- Connects via 2 mm cell cables with banana plugs
- Compatible with PAT-Tester-x-8, commercial potentiostats, and third-party battery testers
Sample Holder (Side-by-Side)
Sample Holder (Face-to-Face)
Sample Holder (Face to Face with Mesh)
Height: 21.5 mm
Width: 51 mm (base), 55 mm (in total)
Depth: 75 mm (base), 77.5 mm (in total)
Electrode dimensions: Up to 10 mm in diameter
Operational temperature range: -20 to +70 °C
Optical characterization mode: Reflective
Cell operation: Full cell, cathode half cell, anode half cell
Cell connection: Cables with 2mm banana plug
