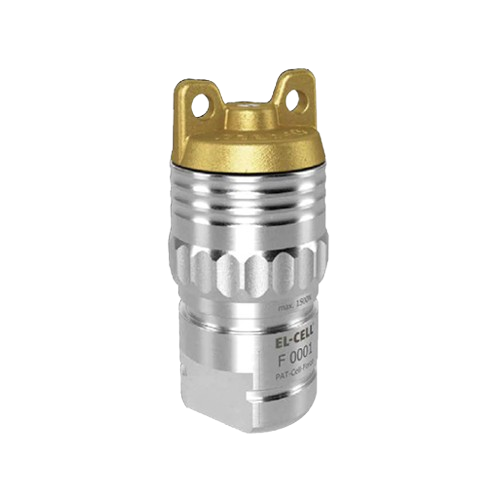

PAT-Cell-Force
The PAT-Cell-Force is a special operando test cell of the PAT series for the adjustment and measurement of the mechanical force applied on the cell stack.
1. Mechanical Force Control
- Adjustable and measurable mechanical force on the cell stack (up to 1500 N)
- Force can be set during assembly and monitored during cycling
2. Integrated Sensors
- Built-in temperature sensor
- Gas pressure sensor (0–3 bar abs.)
- Force sensor for monitoring applied pressure
3. Electrochemical Measurement
- Supports 2- and 3-electrode setups with ring-shaped reference electrode
- Compatible with both liquid and solid-state electrolytes
4. System Compatibility & Data Logging
- Operates with EL-CELL systems such as PAT-Tester-x-8
- All sensor data recorded and displayed through EL-Software
5. Design & Sealing
- Glass-to-metal sealed electrode feedthroughs
- Welded-in sensors for long-term stability
- Helium leak tested for high tightness
6. Ease of Use
- Cableless connection via PAT socket
- Integrated PAT-Button for automatic identification
Height: 104 mm
Diameter: 49.5 mm
Weight: 0.8 kg
Separator diameter: 21.6 mm
Electrode diameter: 18 mm
Operational temperature: -20 to 80 °C
Force sensor (digital)
Range: Up to 1500 Newton (up to 5.9 MPa at 18 mm electrode diameter)
Gas pressure sensor (digital)
Range: 0 to 3 bar abs.
Accuracy: < 5 mbar
Resolution: 0.1 mbar
Temperature sensor (digital)
Range: -20 to 80 °C
