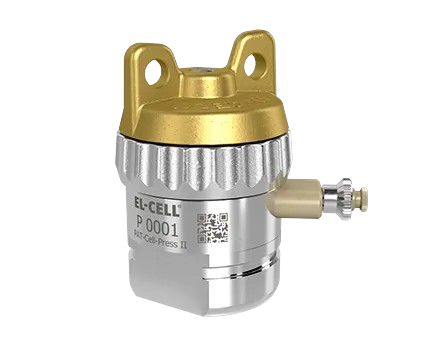

PAT-Cell-Press II
The PAT-Cell-Press II is the ideal, leakproof cell for measuring gas evolution
1. Advanced Sensing & Monitoring
- Digital pressure and temperature sensors
- Pressure measurement range: 0–3 bar abs.
- Enables quantification of gas evolution and consumption
- Optional gas sampling port (PAT-Cell-Press S)
2. High-Tightness & Robust Construction
- Laser-welded sensors
- Glass-to-metal electrode feedthroughs
- High-integrity metal seals
3. Modular PAT-Core Architecture
- Utilizes the PAT-Core system for fast cell-stack configuration
- Supports versatile electrochemical cell designs
- Compatible with aprotic and aqueous electrolytes
4. Wireless Integration & Ease of Use
- Wireless connection to the potentiostat reduces interference
- PAT-Button for automatic cell identification in EL-Software
5. System Compatibility & Upgrade Path
- Full replacement for the previous PAT-Cell-Press
- Optimized for EL-CELL potentiostats
- Supports 2- and 3 electrode configurations
Diameter (lid): 49.5 mm
Diameter (cell base): 44 mm
Height: 73 mm
Width: 70 mm (with gas sample port)
Weight: 0.5 kg
Separator diameter: 21.6 mm
Electrode diameter: 18 mm
Operational temperature: -20 to +80°C
Pressure sensor
Range: 0 to 3 bar abs.Accuracy: < 5 mbar
Resolution: < 0.2 mbar
