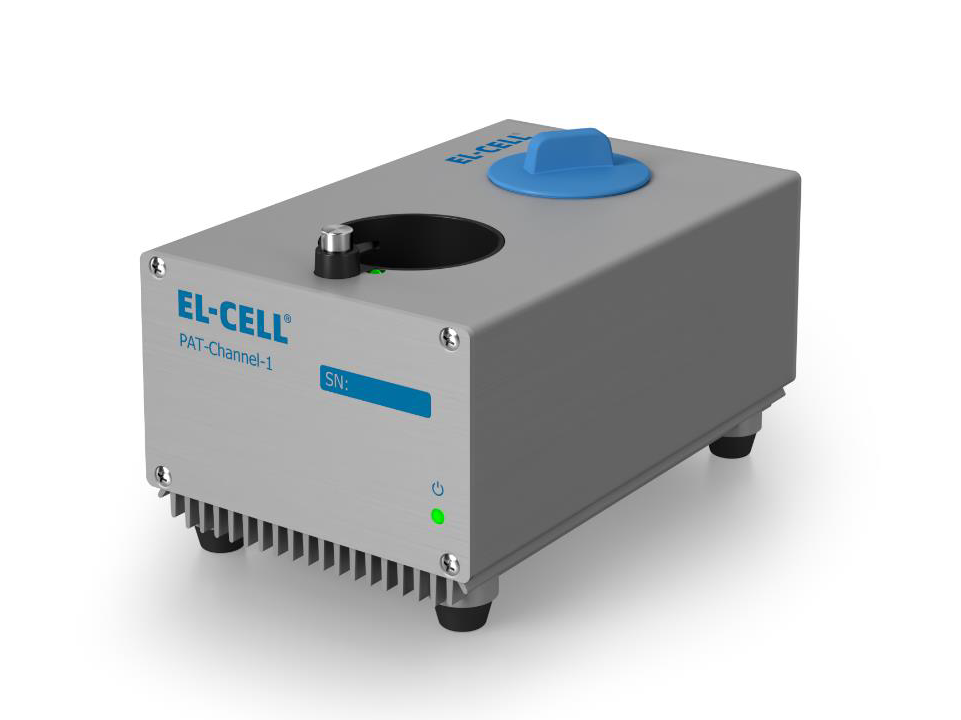

PAT-Channel-1
The PAT-Channel-1 is a fully featured, single-channel station that is operated in conjunction with a PAT-Controller.
It has a docking socket for one PAT series test cell and external connectors to connect a test cell of a different type or a separate docking station.
This enables, for example, another docking station with a PAT-Cell to be tested in a temperature cabinet at elevated temperatures that would otherwise be too high for the tester’s electronics.
Length: 164 mm
Height: 97 mm
Width: 105 mm
Weight: 1.3 kg
Temperature operation range: -20 to + 40 °C
Humidity: Non-condensing
General
Channels per device: 1
Control Voltage: -7 V to +7 V
Compliance Voltage: -8 V to 8 V (no load)
Current: ±100 mA
Cell connection/Electrode connection: 3 Electrodes plus sense wires, Connection matrix
ADC: 2 x 24 Bit
DAC: 1 x 18 Bit
Bandwidth ranges: 500 kHz, 50 kHz, 5 kHz
Slew rate: 2.5 V / µs
Sampling interval (rate)
Input Impedance: >100 MΩ || 20 pF
Computer interface: 1 GBit Ethernet, Runs standalone, Multiuser
Voltage
Acquisition voltages: Full cell voltage, Both half-cell voltages, Auxiliary voltage
Measurement accuracy: ±0.02% of FSR (Full scale range)
Measurement noise floor: 30 μV peak-peak typical
Control resolution: 57 μV (18 Bit)
Current
Current ranges: ±100 mA, ±10 mA, ±1 mA, ±100 μA, AutorangeMeasurement accuracy: ±0.05% of FSR
Control resolution: 1 nA min. (18 Bit)
Impedance (each channel)
Frequency range: 100 μHz to 100 kHz
Impedance modes: PEIS and GEIS (each with simultaneous measurement of full- and half-cell impedances)
Impedance range: 1 mΩ to 100 MΩ
EIS quality indicator: SFDR (Spurious Free Dynamic Range)
EIS drift correction: yes
EIS adaptive amplitude: yes
